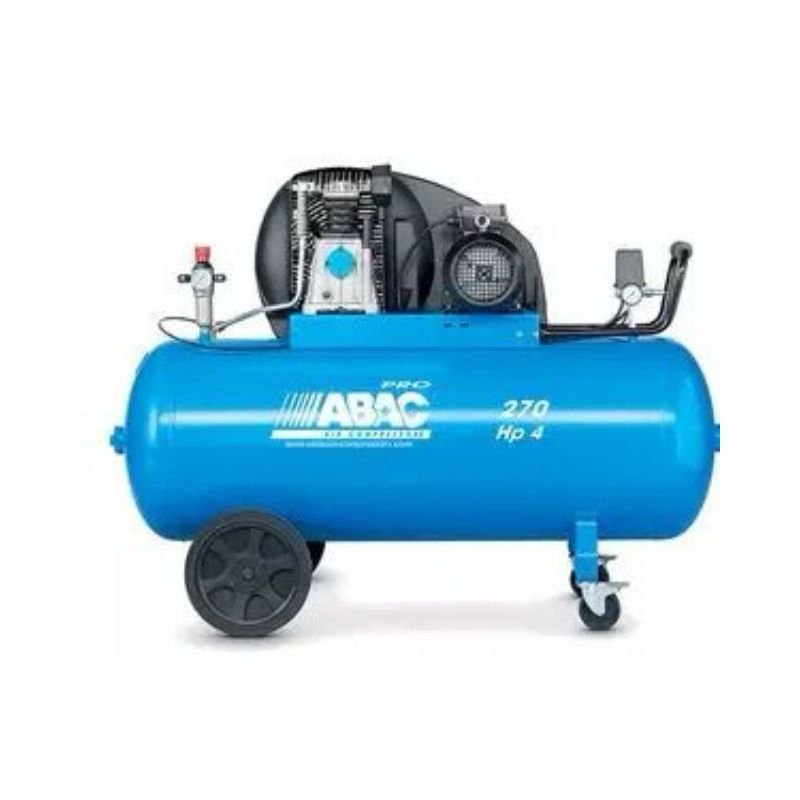

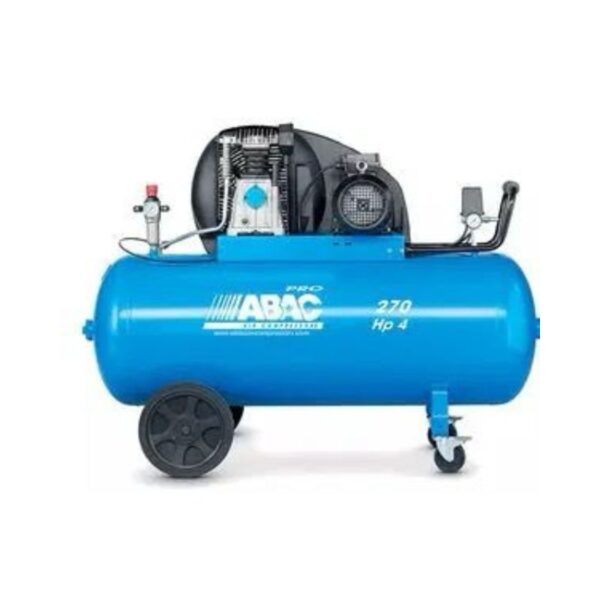

Abac electric Piston air compressor PRO A39B 270 CM3

The range 270 L 3 HP is perfect for intermittent or frequent use and ideal for applications such as inflating, blowing, cleaning, stapling, painting operations, nailing, spraying, grouting, hammering and many more. The sound level power is 93 db(A) according to DIN EN ISO 3744.

Technology – piston
Type – air
Power source – electric
Portability – mobile
Lubrication – oil-free, lubricated
Voltage – 400 V, 230 V

Tank volume -270 LTR (71.3 gal)
Pressure – 10 bar, 11 bar
(145.04 psi, 159.54 psi)

Flow – Min.: 393 l/min
(103.82 us gal/min)
Max.: 1,210 l/min
(319.65 us gal/min)

Power – 2.2 kW, 3 kW, 4 kW, 5.5 kW, 7.5 kW (2.99 hp, 4.08 hp, 5.44 hp, 7.48 hp, 10.2 hp)

Length – 1,500 mm, 1,530 mm, 1,532 mm, 1,575 mm, 1,600 mm
(59 in, 60 in, 60 in, 62 in, 63 in)

Width – Min.: 595 mm (23 in)
Max.: 630 mm (25 in) Height

Min.: 660 mm(26 in)
Max.: 1,250 mm (49 in)

Weight Min.: 120 kg (264.6 lb)
Max.: 252 kg (555.6 lb)

Noise level Min.: 93 dB
Max.: 97 d
